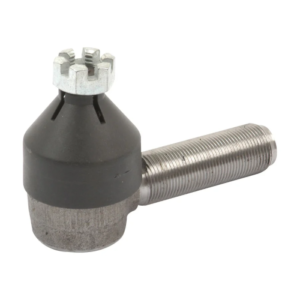

Track Rod, Length: 92mm – S.71264 0.62 kg

Description
Ø A (mm): M22 x 1.5 RH, Ø B (mm): M14 x 1.5, Ø C (mm): 15.9 – 14.8mm, D (mm): 11mm.
Brand: Sparex
C (mm): 14.5
D (mm): 100
Inner side thread Ø A (mm): M22 x 1.5 RH
Length (mm): 92
Outer side thread Ø B (mm): M14 x 1.5
Taper C (mm): 15.9 – 14.8
Taper length D (mm): 11
Tariff Code:8708949900
Thread length E (mm): 18
Type: Male Thread – Straight

Specifications
Manufactures Specifications
Brand: Sparex
C (mm): 14.5
D (mm): 100
Inner side thread Ø A (mm): M22 x 1.5 RH
Length (mm): 92
Outer side thread Ø B (mm): M14 x 1.5
Taper C (mm): 15.9 – 14.8
Taper length D (mm): 11
Tariff Code:8708949900
Thread length E (mm): 18
Type: Male Thread – Straight
Suitable For Information
Allis Chalmers
5040
Fiat
450R, 480
Long Tractor
310, 350, 360, 445, 460, 460V, 510, 550, 560, 610
Universal Tractors
1033, 300, 340, 350, 350DT, 445, 445DT, 500, 500DT, 530, 530DT, 550, 550DT, 640, 640DT
OEM Manufacture Information
Allis Chalmers
72090449
Fiat
04988567, 4988567
Long Tractor
TX10812
Universal Tractors
40 30 028, 4030927, 4030028, 40 30 927, 512137
