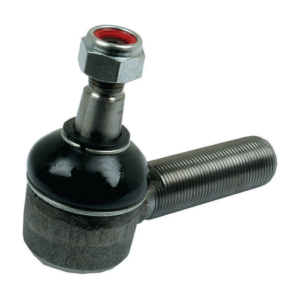

Track Rod, Length: 90mm – S.71201 0.63 kg

Description
Ø A (ins): 7/8″ x 16tpi, Ø B (ins) Ø C (mm): 18.1 – 15.77mm, D (mm): 19.2mm.
Brand: Sparex
C (mm): 17.91 – 15.47
Inner side thread Ø A (ins): 7/8″ x 16tpi
Length (mm): 90
Outer side thread Ø B (mm): M14 x 1.5
Taper C (mm): 18.1 – 15.77
Taper length D (mm): 19.2
Tariff Code:8708949900
Thread length E (mm): 22.6
Type: Male Thread – Straight

Specifications
Manufactures Specifications
Brand: Sparex
C (mm): 17.91 – 15.47
Inner side thread Ø A (ins): 7/8″ x 16tpi
Length (mm): 90
Outer side thread Ø B (mm): M14 x 1.5
Taper C (mm): 18.1 – 15.77
Taper length D (mm): 19.2
Tariff Code:8708949900
Thread length E (mm): 22.6
Type: Male Thread – Straight
Suitable For Information
Case IH / International Harvester
238, 248, 258, 268, 288, 3210, 3220, 3230, 385, 395, 4210, 4220, 4230, 4240, 454, 474, 475, 484, 485, 485XL, 495, 495XL, 574, 584, 585, 585XL, 595, 595XL, 674, 684, 685, 685XL, 695, 695XL, 784, 785, 785XL, 795, 795XL, 884, 885, 885XL, 895, 895XL, 995, 995XL, CX100, CX50, CX60, CX70, CX80, CX90, MX100C, MX80C, MX90C
McCormick
CX100, CX50, CX60, CX70, CX80, CX90
Volvo
2200, 2250, T500
OEM Manufacture Information
Case IH / International Harvester
3116407R3, 3116407R5C
