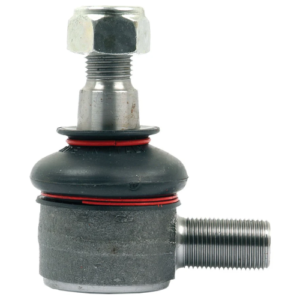

Track Rod, Length: 51mm – S.63228 0.54 kg

Description
Ø A (ins): 11/16″ UNF RH, Ø B (ins) Ø C (mm): 22.3 – 19.4mm, D (mm): 24.7mm.
Brand: Sparex
Inner side thread Ø A (ins): 11/16″ UNF RH
Length (mm): 51
Outer side thread Ø B (mm): M16 x 1.5
Taper C (mm): 22.3 – 19.4
Taper length D (mm): 24.7
Tariff Code: 8708949900
Thread length E (mm): 22
Type: Male Thread – Straight

Specifications
Manufactures Specifications
Brand: Sparex
Inner side thread Ø A (ins): 11/16″ UNF RH
Length (mm): 51
Outer side thread Ø B (mm): M16 x 1.5
Taper C (mm): 22.3 – 19.4
Taper length D (mm): 24.7
Tariff Code: 8708949900
Thread length E (mm): 22
Type: Male Thread – Straight

Suitable For Information
Case IH / International Harvester
1390, 1394, 480B, 480C, 480D, 480E, 580, 580 SUPER D, 580B, 580C, 580D, 580E, 580F, 580G, 580SE, 584D, 584E, 584FL, 585D, 585E, 586D, 586E, 586FL

OEM Manufacture Information
Case IH / International Harvester
A40962, D120800
